Golf Mechanix Programable Epoxy Cure System 7-GM1081

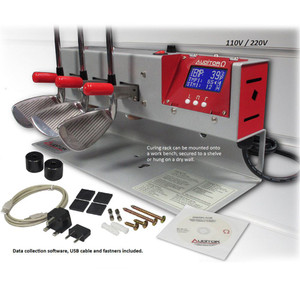

Auditor Omega Programable Curing Rack 200320 Designed primarily for OEM club manufacturers to bench mark the suitability of structural epoxy adhesives in sharing golf clubs under a produceon environment. The Auditor Omega Digital Epoxy Cure System provides both the control and accuracy needed to develop unique curing profiles that drastically cut down handling time between assembly steps without compromising optimal adhesive performance.

The two stage curing process greatly benefits most two part epoxy adhesives where the first stage provides sufficient kinetic energy to quickly initiate the chemical reaction. The second stage’s high temperature cure cycle promotes high density cross linking of the reactants to achieve the best possible mechanical properties.

Stages 1 & 2 are controlled by the Auditor Omega proportional timme and temperature controller which constantly monitors and adjusts its firing rate, bringing the heatng rail to the target temperature quickly while optimizing soak time within a narrow band not exceeding +/- 3OC. To assist process engineers and lab technicians develop, test and bench mark cure profiles, the Auditor Omega features a bi-directional upload/download function with cure cycle data recording capability. Temp Off +3 On -3 Set Temp1 Rise Time Load Dependent Room Temp Time Set Temp2 Temp Variance +/- 3.

Rise Time Load Dependent Off +3 On -3 -Programable temperature controller with excellent accuracy. -On board memory for 10 user defined adhesive curing profiles. -USB Upload & download of curing profiles. -Handles 1 hour cure cycle at 50~200 o C / 122~392o F per step. -Holds up to 7 clubs, allowing ample spacing between clubs. -Powerful, 500W sealed heater cartridge. -Data collection & programming software included. -Compact wall mount installation reduces footprint!

Key Features:

*Programable temperature controller with excellent accuracy.
*On board memory for 10 user defined adhesive curing profiles.
*USB Upload & download of curing profiles.
*Handles 1 hour cure cycle at 50~200C / 122~392D per step.
*Holds up to 7 clubs, allowing ample spacing between clubs.
*Powerful, 500W sealed heater cartridge.
*Data collection & programming software included.
*Compact wall mount installation reduces footprint!
